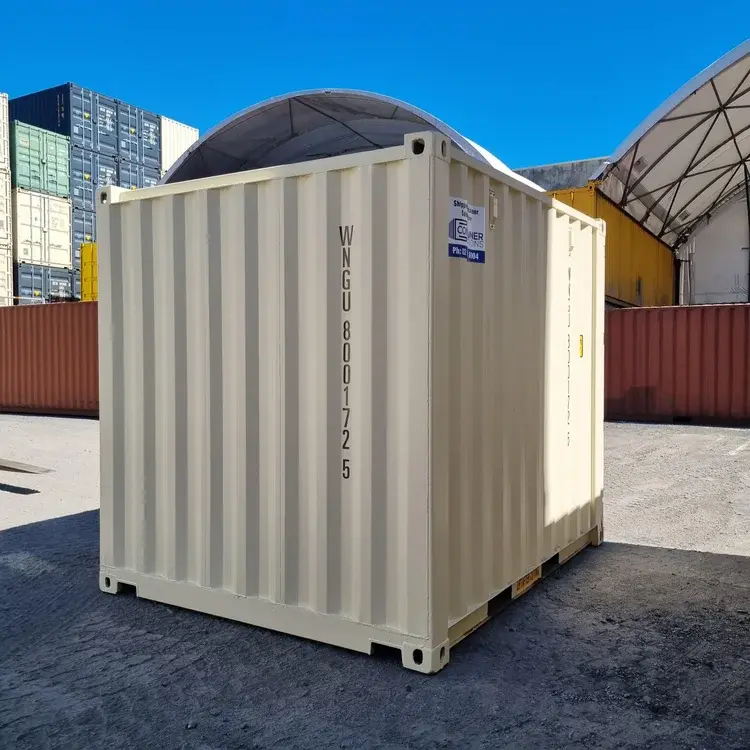

10ft General Purpose (GP) Dry Van — Duo Con configuration

10ft General Purpose (GP) Dry Van — Duo Con configuration

R 12 999,00 Regular Price
R 10 999,00Sale Price
Quantity

Engineered individually or as part of a paired 20ft ISO-interchangeable couple system (Duocon) designed for structural integrity, global transport compliance, and modular spatial optimization.

2. Dimensions & Capacities

Parameter

Metric (SI)

Imperial

External Length

2,991 mm

9 ft 10 in

External Width

2,438 mm

8 ft 0 in

External Height

2,591 mm

8 ft 6 in

Internal Length

~2,831 mm

9 ft 3 in

Internal Width

~2,352 mm

7 ft 9 in

Internal Height

~2,393 mm

7 ft 10 in

Door Opening Width

~2,340 mm

7 ft 8 in

Door Opening Height

~2,280 mm

7 ft 5.8 in

Internal Volume

~15.9 $m^3$

562 $cu\ ft$

Tare Weight

~1,300 kg

~2,866 lbs

Max Gross Weight (MGW)

10,160 kg

22,398 lbs

Max Payload Capacity

~8,860 kg

~19,532 lbs

3. Material & Structural Specifications

  • Steel Construction: Corrugated Corten A-grade weathering steel panels (walls and roof) for superior atmospheric corrosion resistance.

  • Frame: Rolled structural steel sections with heavy-duty corner castings (ISO 1161 compliant for lifting and locking).

  • Flooring: 28mm marine-grade waterproof treated plywood (or bamboo composite), screw-fastened to cross-members to handle high point-load capacities (forklift/pallet jack traffic).

  • Vandals & Weatherproofing: Full perimeter EPDM rubber door gaskets, rain deflectors, and integrated ventilation louvers to prevent condensation buildup.

4. Security & Compliance Features

  • Door Assembly: Standard double-wing cargo doors featuring 4 heavy-duty vertical locking cam bars with galvanized handles.

  • Locking Mechanism: Factory-welded steel lockbox shielding padlocks from bolt-cutters and tampering.

  • Certifications: CSC (Convention for Safe Containers) plated, ISO certified, and approved for multi-modal transport (road, rail, and sea).

5. Logistics & Handling

  • Stacking Safety: Fully interlockable with standard 20ft and 40ft ISO containers when paired or block-stacked.

  • Lifting Provisions: Corner castings allow handling via crane, top-lifter, or fork pockets (if specified). Can be transported easily on smaller flatbeds or tilt-tray trucks without heavy machinery constraints.
