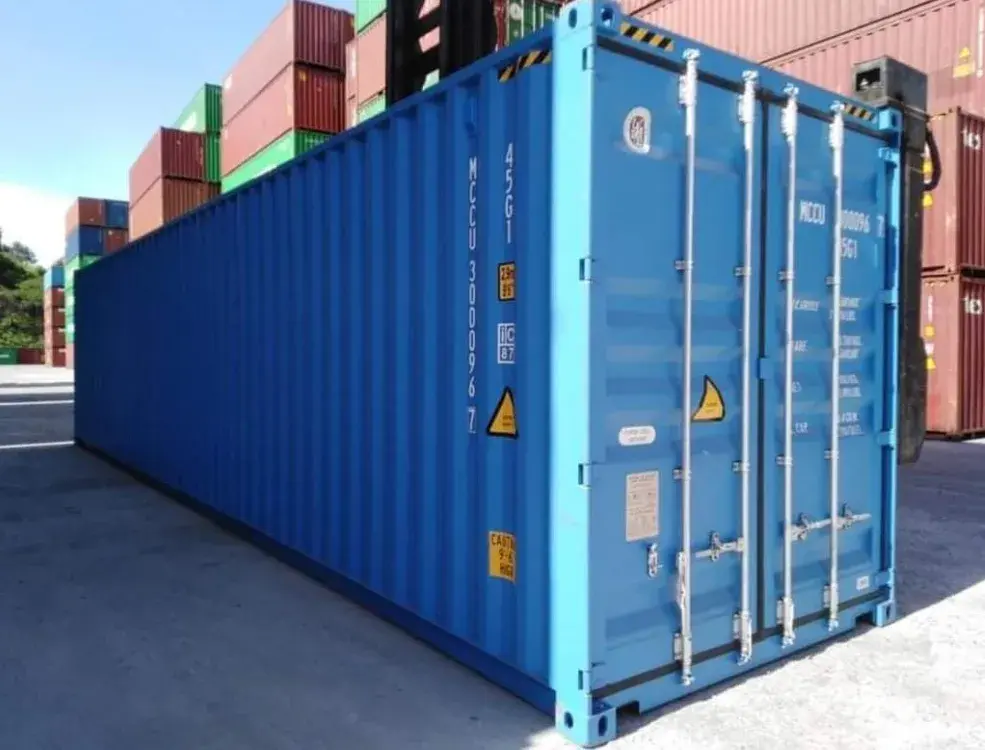

12.2m (40ft) High Cube Shipping Container (One-Trip New / Cargo Worthy)
The 12.2m (40ft) High Cube Shipping Container is the premier choice when you require maximum volumetric capacity and extra vertical clearance. Standing 2.90m (9 feet 6 inches) tall, this container provides an additional 30 centimeters (1 foot) of interior height over standard 8ft 6in dry vans, making it the preferred standard for transporting bulky, tall, or lightweight palletized cargo, as well as converting into custom site offices, workshops, or modular spaces.
Engineered from high-strength, anti-corrosive Corten steel, the High Cube unit features a heavy-duty corrugated roof and wall structure designed to withstand severe ocean environments, heavy stacking, and extreme weather. It is equipped with full 270-degree opening double rear doors featuring multi-lip EPDM rubber weather gaskets, a factory-welded security lockbox, and a solid 28mm marine-grade plywood floor. Whether utilized for international intermodal logistics or secure on-site storage, the 12.2m High Cube delivers unmatched space and reliability.
Key Features & Technical Specifications
1. Extra Vertical Clearance & Volume
2.90m (9' 6") Height Advantage: Provides an additional foot of vertical headroom compared to standard containers, ideal for tall machinery, stacked pallets, or ceiling insulation fit-outs.
Increased Cubic Capacity: Delivers approximately 76.2 cubic meters (2,690 cu ft) of total internal storage space.
Gooseneck Tunnel Recess: Features the standard 40ft ISO gooseneck tunnel slot underneath the front end to secure alignment on standard transport chassis.
2. High-Security & Weatherproof Build
Cor-Ten Marine Steel: Heavy-gauge corrugated steel construction offering exceptional resistance to rust, structural warping, and marine salt spray.
Factory Security Lockbox: Welded steel padlock shield over the door handle mechanism to protect against bolt cutters and forced entry.
Weather-Tight Seals: Premium EPDM rubber door gaskets and high-level louvered vents to prevent moisture build-up and keep interiors 100% wind and watertight.
3. Dimensions & Technical Specifications
Parameter | Metric Specifications | Imperial Specifications |
Container Type | 12.2m High Cube ISO Dry Van | 40ft High Cube ISO Dry Van |
External Length | 12,192 mm | 40' 0" |
External Width | 2,438 mm | 8' 0" |
External Height | 2,896 mm | 9' 6" |
Internal Length | 12,032 mm | 39' 5.7" |
Internal Width | 2,352 mm | 7' 8.6" |
Internal Height | 2,698 mm | 8' 10.2" |
Door Opening Clearance (W x H) | 2,340 mm x 2,585 mm | 7' 8.1" x 8' 5.8" |
Internal Volume | Approx. 76.2 m³ | Approx. 2,690 cu ft |
Tare Weight | Approx. 3,900 kg – 4,200 kg | Approx. 8,598 lbs – 9,259 lbs |
Max Payload | Approx. 26,580 kg – 28,580 kg | Approx. 58,600 lbs – 63,000 lbs |
Max Gross Weight (MGW) | 30,480 kg – 32,500 kg | 67,200 lbs – 71,650 lbs |
