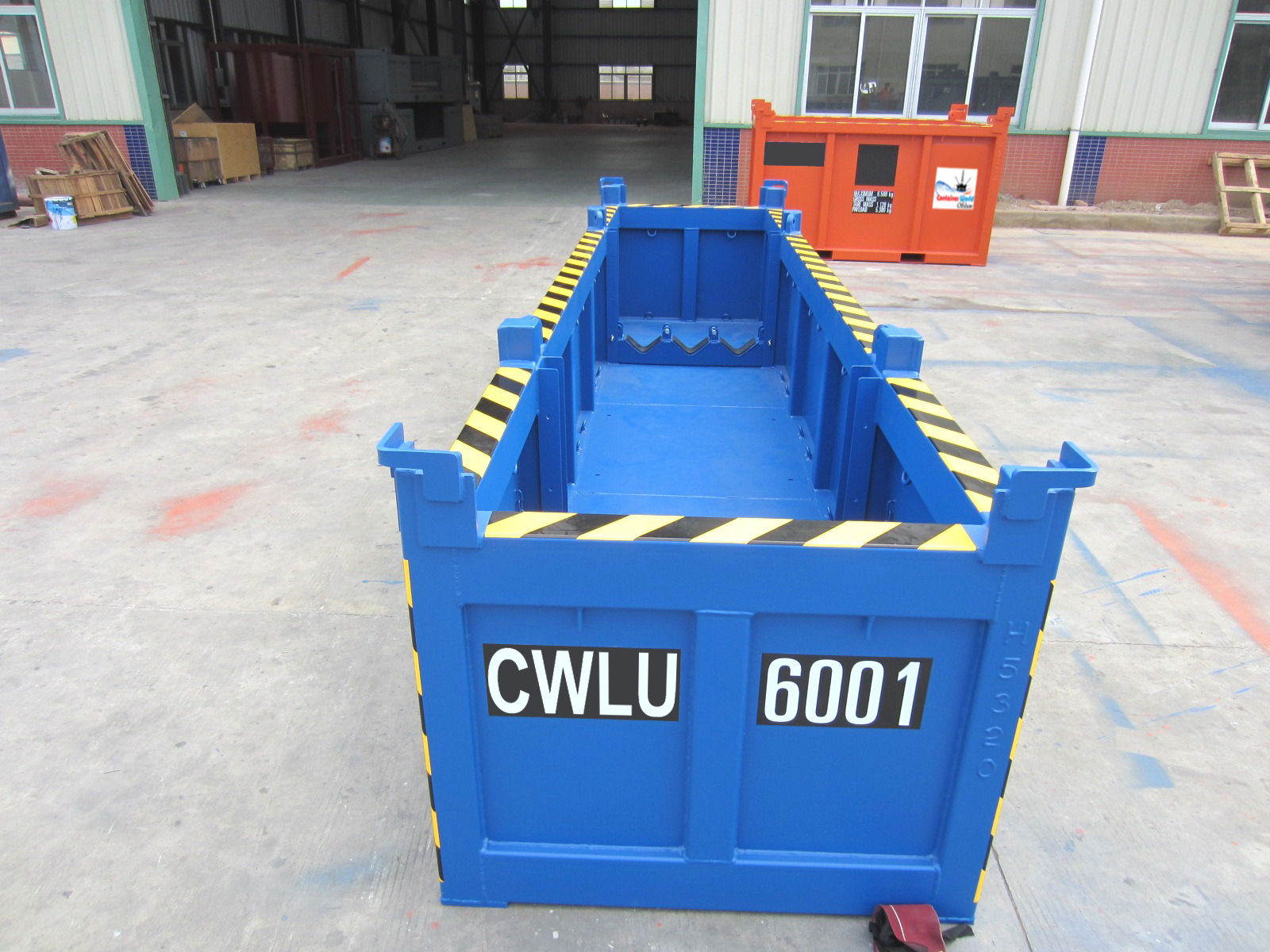

16ft Offshore Cargo Basket (DNV 2.7-1 / EN 12079 Certified)
The 16ft Offshore Cargo Basket bridges the gap between compact tool baskets and long tubular carriers, providing a versatile footprint for offshore oil platforms, subsea operations, and vessel logistics. Designed to transport mid-length drill tools, subs, spools, mud motors, and general site equipment, this open-top basket guarantees rapid crane-loading accessibility during high-seas transfers.
Fully certified to DNV 2.7-1 / BS EN 12079 and ISO 10855 international offshore safety standards, each unit is fabricated from heavy-gauge structural steel and finished with high-build marine epoxy coatings to resist extreme ocean salt-spray. Features include integrated corner guide posts for safe deck stacking, continuous perimeter tie-down lashing points, self-draining floor mesh/ports, an optional drop-down side gate for manual access, and a certified DNV 2.7-1 4-leg wire rope sling set with safety bow shackles.
Key Features & Technical Specifications
1. Offshore Certification & Rigging
Offshore Compliance: Fully certified to DNV 2.7-1, BS EN 12079, and ISO 10855 safety standards for dynamic marine operations.
Sling Assembly: Supplied complete with a certified DNV 2.7-1 4-leg wire rope sling set with safety-type bow shackles.
Integral Padeyes: Four heavy-duty, high-tensile steel padeyes integrated directly into the vertical corner frame posts.
Deck Stacking: Corner guide posts enable alignment-guided stacking on supply vessel decks and rig storage areas.
2. Structural Design & Cargo Protection
Mid-Length Span: Ideal 16ft length accommodates equipment longer than standard 10ft units without exceeding limited deck space.
Access & Drainage: Integrated floor drainage ports to prevent standing water, with optional side-wall drop-down gates for ergonomic manual access.
Internal Lashing: Multiple heavy-duty internal tie-down points along the floor and side rails to secure loose cargo.
Corrosion Protection: Shot-blasted structural steel frame treated with zinc-rich epoxy marine primer and polyurethane topcoat.
3. Dimensions & Weights
Parameter | Metric Specifications | Imperial Specifications |
External Length | 4,876 mm | 16' 0" |
External Width | 1,220 mm / 2,438 mm | 4' 0" / 8' 0" |
External Height | 1,200 mm / 1,400 mm | 3' 11" / 4' 7" |
Internal Length | 4,700 mm | 15' 5" |
Internal Width | 1,060 mm / 2,280 mm | 3' 5.7" / 7' 5.7" |
Internal Height | 950 mm / 1,150 mm | 3' 1.4" / 3' 9.3" |
Tare Weight | Approx. 2,100 kg | 4,630 lbs |
Max Payload | Approx. 6,400 kg | 14,110 lbs |
Max Gross Weight | 8,500 kg | 18,740 lbs |
