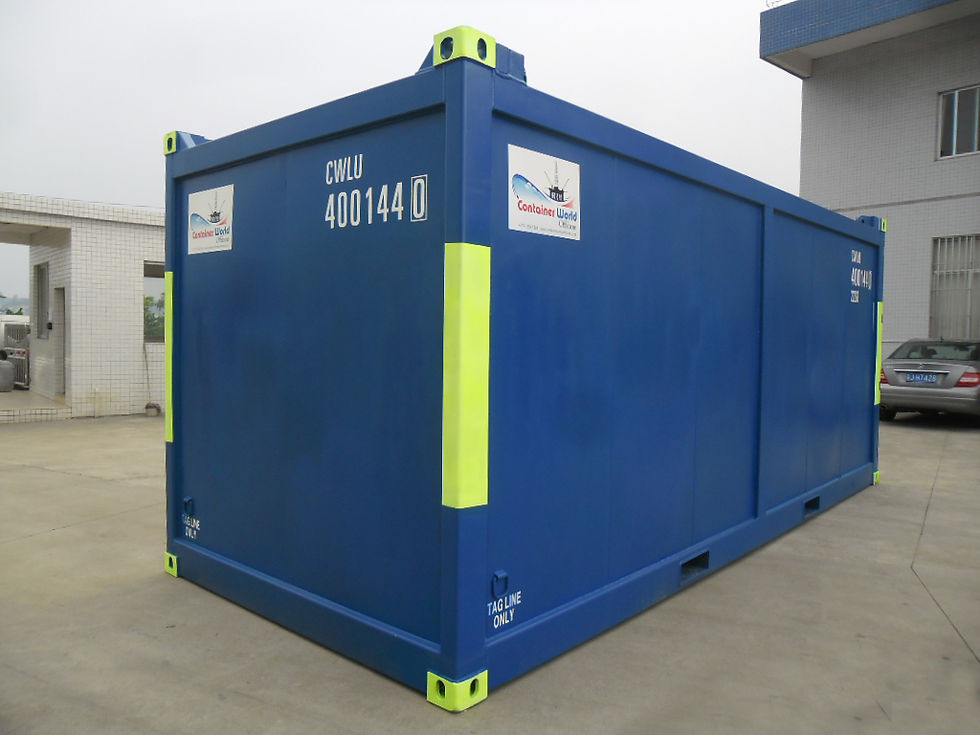

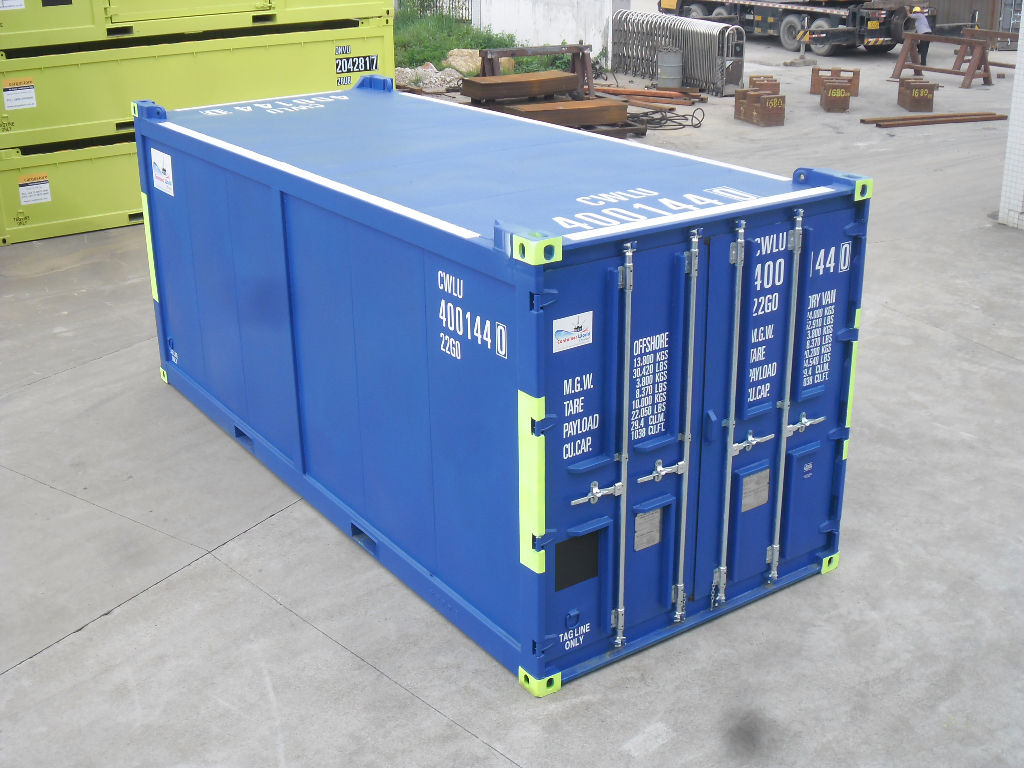

20ft Dry Van Shipping Container (New Build / Single-Trip)
The 20ft Dry Van Shipping Container is the undisputed workhorse of global logistics and secure turn-key site storage. Offering 33.2 cubic meters of dry storage capacity in a manageable footprint, this unit provides the ideal balance of space, strength, and versatility—making it the go-to choice for job-site storage, inventory overstock, agricultural equipment housing, and custom container modifications.
Manufactured brand new (single-trip condition) from high-tensile corrugated Corten steel, this container is engineered to withstand extreme marine environments, intense wind, and heavy rainfall. It features heavy-duty double end doors with galvanized locking bars, multi-lip EPDM rubber weather seals, a factory-welded steel lockbox for tamper-proof padlock security, and a 28mm marine-grade plywood floor. Integrated 4-way forklift pockets and ISO corner castings ensure easy handling on-site or during transit.
Key Features & Technical Specifications
1. Industry-Standard Security & Structural Frame
Standard Footprint: Fits seamlessly into standard transport decks, job sites, and parking bays while delivering maximum internal usable volume.
Corten Steel Body: Manufactured with heavy-gauge corrugated anti-corrosive Corten steel for decades of structural integrity.
Factory Steel Lockbox: Welded protective steel housing shields padlocks from bolt cutters and physical intrusion.
Wind & Water Tight (WWT): Sealed with full-perimeter EPDM rubber gaskets to protect stored goods from water, dust, and pests.
2. Flooring & Cargo Handling
Marine Plywood Floor: 28mm thick heavy-duty marine-grade plywood treated against rot, moisture, and pests.
Forklift Pockets: Built-in bottom forklift pockets for swift maneuverability using standard yard equipment.
Internal Lashing Points: Integrated tie-down rings welded along top and bottom side rails to lock cargo in place.
3. Dimensions & Weights
Parameter | Metric Specifications | Imperial Specifications |
External Length | 6,058 mm | 19' 10.5" |
External Width | 2,438 mm | 8' 0" |
External Height | 2,591 mm | 8' 6" |
Internal Length | 5,898 mm | 19' 4.2" |
Internal Width | 2,352 mm | 7' 8.5" |
Internal Height | 2,393 mm | 7' 10" |
Door Opening Clearance (WxH) | 2,340 mm x 2,280 mm | 7' 8" x 7' 5.7" |
Tare Weight | Approx. 2,200 kg | 4,850 lbs |
Max Payload | Approx. 28,280 kg | 62,345 lbs |
Max Gross Weight | 30,480 kg | 67,195 lbs |
Cubic Capacity | 33.2 m³ | 1,172 cu. ft. |
