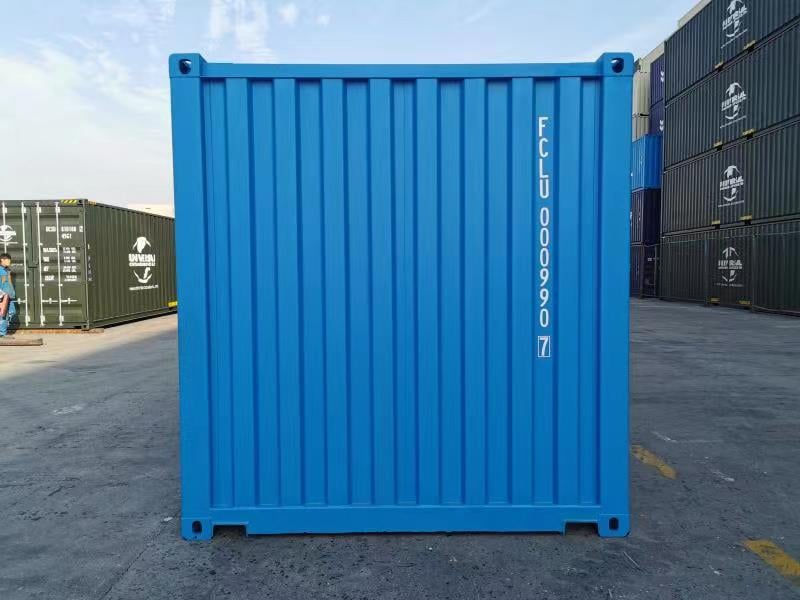

20ft General Purpose Shipping Container
The 20ft Shipping Container (6m General Purpose) is the standard benchmark for secure site storage, global transport, and modular container architecture. Designed to handle heavy structural loads and harsh outdoor conditions, this versatile unit provides a clean, dry, and safe storage environment for equipment, raw materials, tools, and commercial inventory.
Constructed from anti-corrosive, high-tensile corrugated Corten steel, this container is built to endure severe weather, UV exposure, and heavy handling. Fitted with standard double barn doors, an integrated steel security lockbox enclosure, full-perimeter EPDM rubber gaskets, and a 28mm marine-grade plywood floor, it delivers 100% wind and water-tight (WWT) and rodent-proof protection.
Key Features & Technical Specifications
1. High-Tensile Construction & Security
Corten Steel Body: Corrugated anti-corrosive steel frame and panels designed for long lifespans and rust resistance.
Lockbox Security: Integrated factory steel lockbox shielding padlocks against bolt cutters and tampering.
Weather-Tight Seals: Continuous EPDM rubber door gaskets ensuring complete wind and water-tight (WWT) cargo protection.
Ventilation: Dual passive air vents to encourage airflow and prevent interior moisture buildup.
2. Interior & Handling Setup
Flooring: Heavy-duty 28mm marine-grade plywood/bamboo, treated against pests and liquid penetration.
Door Hardware: 270-degree swing double doors with heavy-duty galvanized locking cams and bars.
Yard Handling: Standard ISO corner castings on all 8 corners with bottom forklift pockets for swift site placement.
3. Dimensions & Weights
Parameter | Metric Specifications | Imperial Specifications |
External Length | 6,058 mm | 20' 0" |
External Width | 2,438 mm | 8' 0" |
External Height | 2,591 mm | 8' 6" |
Internal Length | 5,898 mm | 19' 4" |
Internal Width | 2,352 mm | 7' 8.5" |
Internal Height | 2,393 mm | 7' 10" |
Door Clearance (WxH) | 2,340 mm x 2,280 mm | 7' 8" x 7' 5" |
Tare Weight | Approx. 2,200 kg | 4,850 lbs |
Max Payload | Approx. 28,280 kg | 62,350 lbs |
Cubic Capacity | 33.2 m³ | 1,172 cu. ft. |
