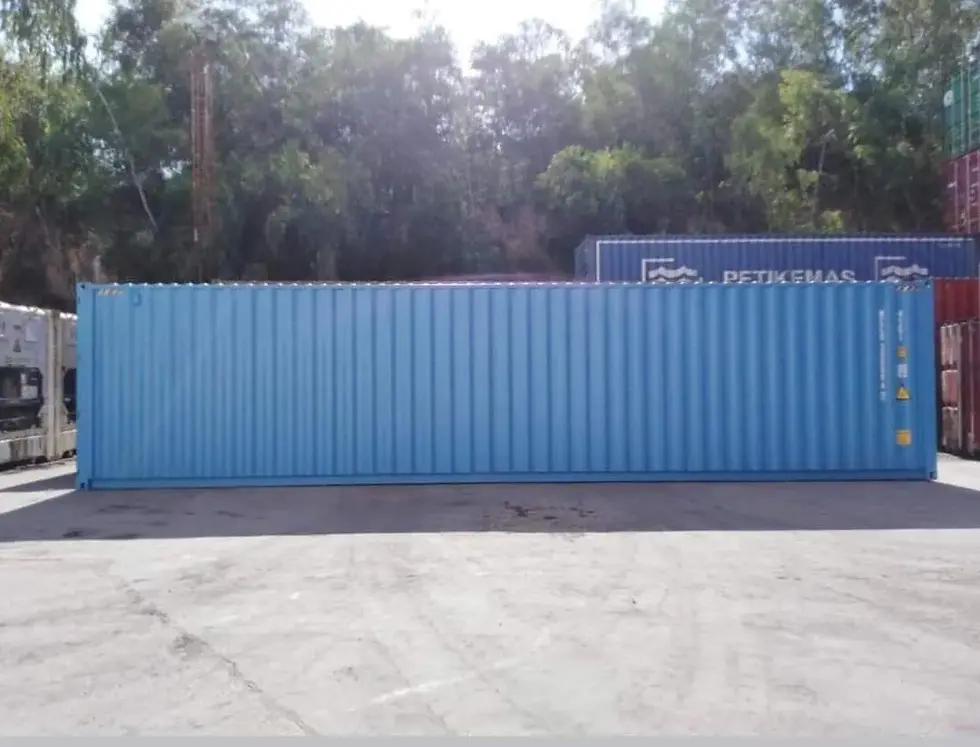

40ft Tunnel Container (One-Trip New, Double Doors Each End)
The 40ft Tunnel Container (Double-End Door Shipping Container) is a specialized intermodal container featuring full-opening double doors at both ends. Also known as a "Tunnel Container," this layout eliminates the "first-in, last-out" loading limitation of standard single-door containers, providing dual-sided access to load, unload, or inspect equipment and inventory from either direction.
Delivered in One-Trip New condition (having carried a single cargo load from the factory overseas to minimize transit costs), this container is in pristine structural and cosmetic shape. Constructed from high-strength Corten steel, it comes factory-equipped with high-security weld-on lockboxes on both door sets, heavy-duty door gaskets, multiple air vents, and 28mm marine-grade plywood flooring. The dual-door architecture makes it a top choice for commercial job sites, self-storage operators, partitioned storage units, and custom architecture projects requiring walk-through capability.
Key Features & Technical Specifications
1. Dual-End Access & Tunnel Architecture
Double Doors at Both Ends: Full-sized ISO swinging double doors on both front and rear header frames for effortless, two-way access.
No Trapped Cargo: Easily retrieve items stored in the middle or back without unloading the entire container.
Ideal for Partitioning: Perfect for dividing down the middle into two separate 20ft secure storage compartments with independent private entries.
2. One-Trip New Quality & Security Build
Cor-Ten Anti-Corrosive Steel: Heavy-gauge corrugated steel sides, roof panels, and corner posts designed for decades of exposure.
Dual Security Lockboxes: Factory-installed steel lockboxes on both door sets to shield padlocks against bolt cutters and tampering.
Weatherproof & Sealed: Multi-lip EPDM rubber door gaskets, high-level air vents to prevent condensation ("container rain"), and sealed 28mm marine plywood floors.
3. Dimensions & Technical Specifications
Parameter | Metric Specifications | Imperial Specifications |
Container Type | 40ft Tunnel ISO Container (Double Door Both Ends) | 40ft Tunnel ISO Container (Double Door Both Ends) |
Condition Grade | One-Trip New (Factory Fresh) | One-Trip New (Factory Fresh) |
External Length | 12,192 mm | 40' 0" |
External Width | 2,438 mm | 8' 0" |
External Height | 2,591 mm (Std) / 2,896 mm (HC) | 8' 6" (Std) / 9' 6" (HC) |
Internal Length | 12,001 mm | 39' 4.5" |
Internal Width | 2,352 mm | 7' 8.6" |
Internal Height | 2,393 mm (Std) / 2,698 mm (HC) | 7' 10.2" (Std) / 8' 10.2" (HC) |
Door Opening Clearance (W x H) | 2,340 mm x 2,280 mm (Std) | 7' 8.1" x 7' 5.7" (Std) |
Internal Volume | Approx. 67.5 m³ (Std) / 76.2 m³ (HC) | Approx. 2,383 cu ft / 2,690 cu ft |
Tare Weight | Approx. 3,900 kg – 4,150 kg | Approx. 8,598 lbs – 9,149 lbs |
Max Payload | Approx. 26,330 kg – 28,350 kg | Approx. 58,050 lbs – 62,500 lbs |
Max Gross Weight (MGW) | 30,480 kg – 32,500 kg | 67,200 lbs – 71,650 lbs |
