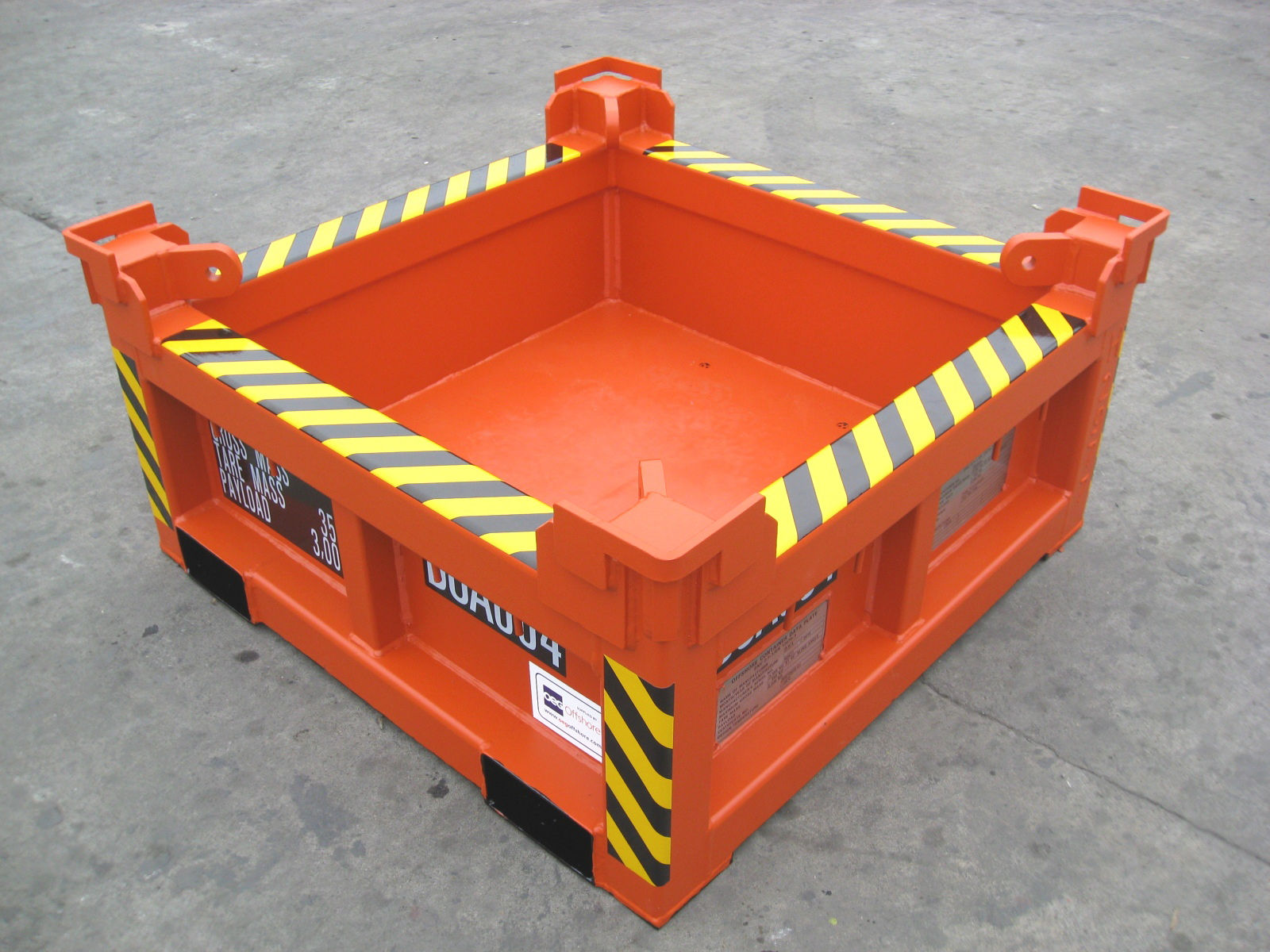

4ft Offshore Cargo Basket (DNV 2.7-1 / EN 12079 Certified)
The 4ft Offshore Cargo Basket (OCB Series) is an ultra-compact, open-top storage and transport frame designed specifically for short, heavy offshore cargo consignments, subsea valves, pump units, hoses, and general rigging gear. Built for high deck space efficiency on oil rigs, gas platforms, and supply vessels, it provides immediate top-loading overhead access for crane operations while maintaining total cargo security during sea transport.
Certified strictly to DNV 2.7-1 / BS EN 12079 and ISO 10855 international offshore standards, this basket is constructed from heavy-gauge structural steel panels and hollow sections to withstand severe dynamic impact loading. Features include multiple internal tie-down lashing points, optional drainage ports, removable mesh/tarp lids or side safety doors, integrated lifting padeyes, bottom 4-way forklift pockets, and a certified DNV 2.7-1 4-leg wire rope sling set with safety bow shackles.
Key Features & Technical Specifications
1. Offshore Certification & Rigging
Offshore Safety Compliance: Fully certified to DNV 2.7-1, BS EN 12079, and ISO 10855 for marine dynamic crane lifting and ocean transport.
Rigging Assembly: Supplied complete with a certified DNV 2.7-1 4-leg wire rope sling set fitted with safety bow shackles.
Integral Padeyes: Four high-tensile steel padeyes welded directly to the main vertical structural frame.
Crane Access: Open-top design allows for fast, unrestricted overhead loading and unloading via crane hook or rigging hoist.
2. Heavy-Duty Frame & Secure Transport
Structural Frame: Built with high-strength structural carbon/Corten steel panels or steel mesh sides with bottom floor drainage.
Cargo Securing: Internal perimeter lashing rings along bottom rails for heavy strap/chain tie-downs.
Forklift & Stacking: Includes bottom 2-way or 4-way forklift pockets and stacking corner posts for deck area optimization.
Corrosion Resistance: Finished with hot-dip galvanizing or marine-grade high-build zinc epoxy coating for extreme offshore environments.
3. Dimensions & Weights (4ft Footprint Specs)
Parameter | Metric Specifications | Imperial Specifications |
External Length | 1,220 mm – 1,350 mm | 4' 0" – 4' 5" |
External Width | 1,220 mm – 1,350 mm | 4' 0" – 4' 5" |
External Height | 1,100 mm – 1,400 mm | 3' 7" – 4' 7" |
Internal Length | 1,060 mm – 1,200 mm | 3' 5.7" – 3' 11.2" |
Internal Width | 1,060 mm – 1,200 mm | 3' 5.7" – 3' 11.2" |
Internal Height | 850 mm – 1,150 mm | 2' 9.5" – 3' 9.3" |
Tare Weight | Approx. 550 kg – 850 kg | 1,212 lbs – 1,873 lbs |
Max Payload | Approx. 2,450 kg – 3,500 kg | 5,401 lbs – 7,716 lbs |
Max Gross Weight | Approx. 3,000 kg – 4,350 kg | 6,613 lbs – 9,590 lbs |
