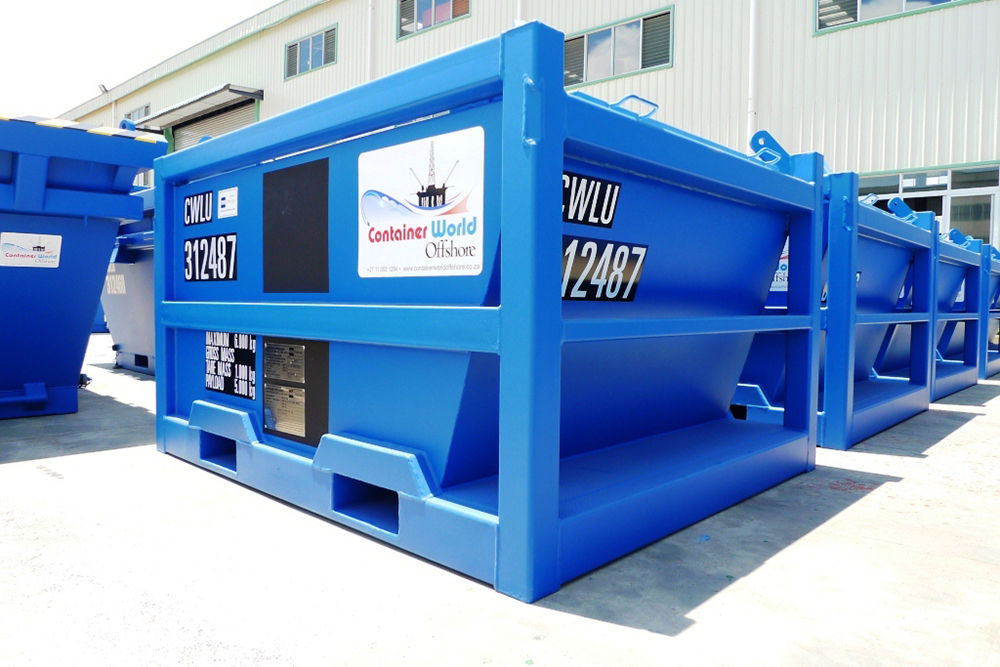

5 Ton Mud Cutting Skip (DNV 2.7-1 / EN 12079 Certified)
The 5 Ton Offshore Mud Cutting Skip is purpose-engineered for the safe containment, offshore rig-to-shore handling, and ocean transport of oil-based and water-based drill cuttings, drilling fluids, hazardous waste, and heavy production sludges. Designed to withstand severe dynamic loads during offshore crane operations, this unit prevents hazardous leaks, marine pollution, and environmental spillage in compliance with strict offshore environmental policies.
Certified strictly to DNV 2.7-1 / BS EN 12079 and ISO 10855 international offshore standards, each skip is constructed from heavy-gauge, corrosion-resistant Corten steel and finished with high-build marine epoxy primer and polyurethane topcoats. Featuring a fully sealed, mud-tight top access lid fitted with heavy-duty adjustable toggle clamps and oil-resistant rubber gaskets, it provides seamless filling, dumping, and stacking. Every unit comes complete with integrated corner lifting padeyes, 4-way forklift pockets, and a certified DNV 2.7-1 4-leg wire rope sling set with safety bow shackles.
Key Features & Technical Specifications
1. Environmental Sealing & Offshore Certification
DNV 2.7-1 Safety Compliance: Fully certified to DNV 2.7-1, BS EN 12079, and ISO 10855 for offshore dynamic crane lifting and vessel transport.
Mud-Tight Seal System: Hinged heavy-duty top cover with replaceable, oil/chemical-resistant seal gaskets and perimeter toggle clamps to ensure 100% spill-proof containment.
Rigging Assembly: Supplied complete with a certified DNV 2.7-1 4-leg wire rope sling assembly and safety bow shackles.
Integral Padeyes: Four high-tensile steel corner padeyes integrated directly into the upper frame structure for balanced crane lifts.
2. Heavy-Duty Frame & Ergonomics
Corten Steel Structure: Reinforced steel body designed for high payload density, impact resistance, and long service life in saltwater environments.
Easy Discharge & Stacking: Tapered internal walls to facilitate rapid unloading/cleaning, plus built-in stacking posts for compact deck placement.
Forklift Access: Heavy-duty bottom 2-way or 4-way forklift pockets for easy site maneuverability and dockside handling.
3. Dimensions & Weights (Standard 5-Ton / 3.2m³ Capacity Model)
Parameter | Metric Specifications | Imperial Specifications |
Nominal Volumetric Capacity | Approx. 2.7 m³ – 3.3 m³ | 3.5 cu. yd. – 4.3 cu. yd. |
External Length | 2,200 mm – 2,450 mm | 7' 2.6" – 8' 0.5" |
External Width | 1,600 mm – 1,850 mm | 5' 3" – 6' 0.8" |
External Height | 1,250 mm – 1,550 mm | 4' 1.2" – 5' 1" |
Tare Weight | Approx. 1,200 kg – 1,500 kg | 2,645 lbs – 3,306 lbs |
Max Payload | 5,000 kg | 11,023 lbs |
Max Gross Weight (MGW) | Approx. 6,200 kg – 6,500 kg | 13,668 lbs – 14,330 lbs |
