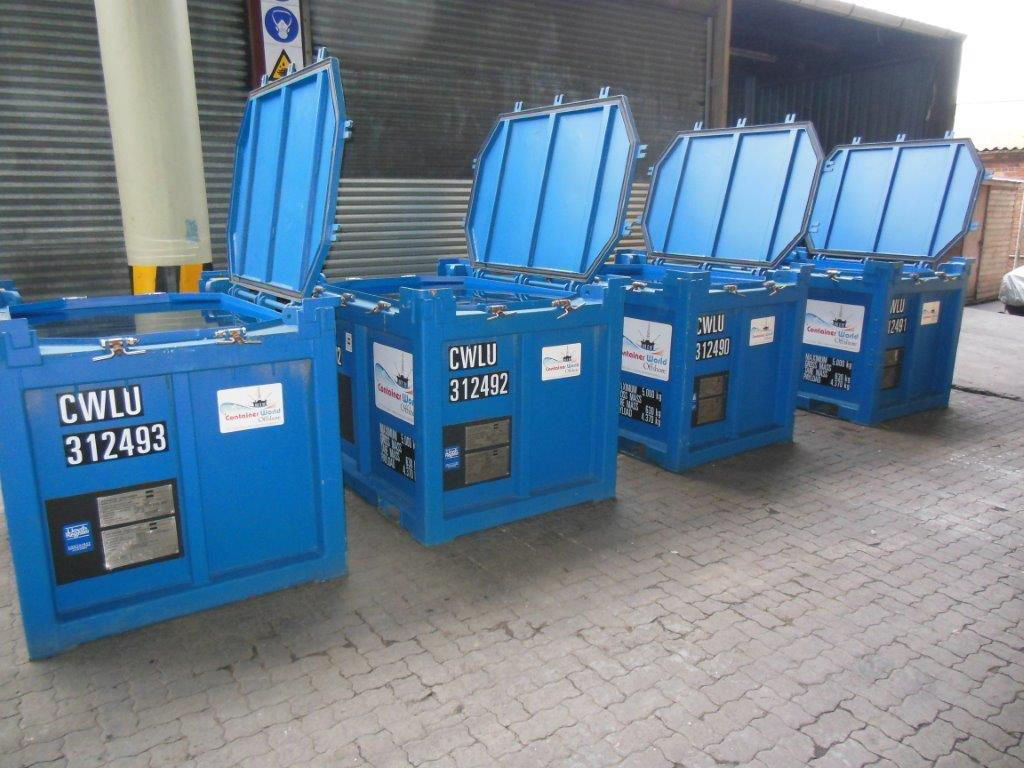

5 Ton Offshore Tool Box (DNV 2.7-1 / EN 12079 Certified)
The 5 Ton Offshore Tool Box Container is specifically engineered for the safe transport, organization, and weather-tight storage of high-value site tools, hand equipment, hydraulic power packs, testing gear, and rigging accessories across offshore rigs, oil & gas platforms, and marine supply vessels. Built to withstand dynamic wave-action loads during crane transfers, this unit provides maximum equipment protection and operational efficiency.
Certified strictly to DNV 2.7-1 / BS EN 12079 and ISO 10855 international offshore standards, each tool box is constructed from heavy-gauge anti-corrosive Corten steel with marine-grade epoxy coatings. The interior features reinforced adjustable steel shelving, vice benches, internal drawer options, and continuous perimeter lashing points for gear tie-downs. Heavy-duty double-hinged doors with multi-lip EPDM rubber seals and padlock enclosures ensure 100% weather-tight and burglar-resistant protection on deck. Every unit comes complete with integrated corner lifting padeyes, 4-way forklift pockets, and a certified DNV 2.7-1 4-leg wire rope sling set with safety bow shackles.
Key Features & Technical Specifications
1. Offshore Certification & Rigging
Offshore Safety Compliance: Fully certified to DNV 2.7-1, BS EN 12079, and ISO 10855 for dynamic offshore crane operations.
Rigging Assembly: Supplied complete with a certified DNV 2.7-1 4-leg wire rope sling set fitted with safety bow shackles.
Integral Padeyes: Four high-tensile steel corner padeyes integrated into the main upper frame structure.
Deck Space Efficiency: Compact design engineered for easy positioning and deck space optimization on supply vessels and rig platforms.
2. Internal Organization & Heavy Security
Interior Workstation & Shelving: Built-in heavy-duty steel shelving racks, tool retention lips, and optional workbench with vice mount.
Cargo Security: Perimeter lashing rings along floor and side walls for securing heavy loose gear during rough sea transit.
Door Protection: Double swing doors equipped with heavy-duty locking bars, anti-pry padlock enclosure, and full perimeter EPDM rubber weather gaskets.
Handling: Built-in 4-way forklift pockets for dockside and deck maneuvering.
3. Dimensions & Weights (Standard 5-Ton Rating Specs)
Parameter | Metric Specifications | Imperial Specifications |
External Length | 1,800 mm – 2,200 mm | 5' 11" – 7' 2.6" |
External Width | 1,600 mm – 1,850 mm | 5' 3" – 6' 0.8" |
External Height | 1,800 mm – 2,200 mm | 5' 11" – 7' 2.6" |
Internal Length | 1,650 mm – 2,050 mm | 5' 5" – 6' 8.7" |
Internal Width | 1,450 mm – 1,700 mm | 4' 9" – 5' 7" |
Internal Height | 1,550 mm – 1,950 mm | 5' 1" – 6' 4.8" |
Tare Weight | Approx. 1,100 kg – 1,400 kg | 2,425 lbs – 3,086 lbs |
Max Payload | 3,600 kg – 3,900 kg | 7,936 lbs – 8,598 lbs |
Max Gross Weight (MGW) | 5,000 kg | 11,023 lbs |
