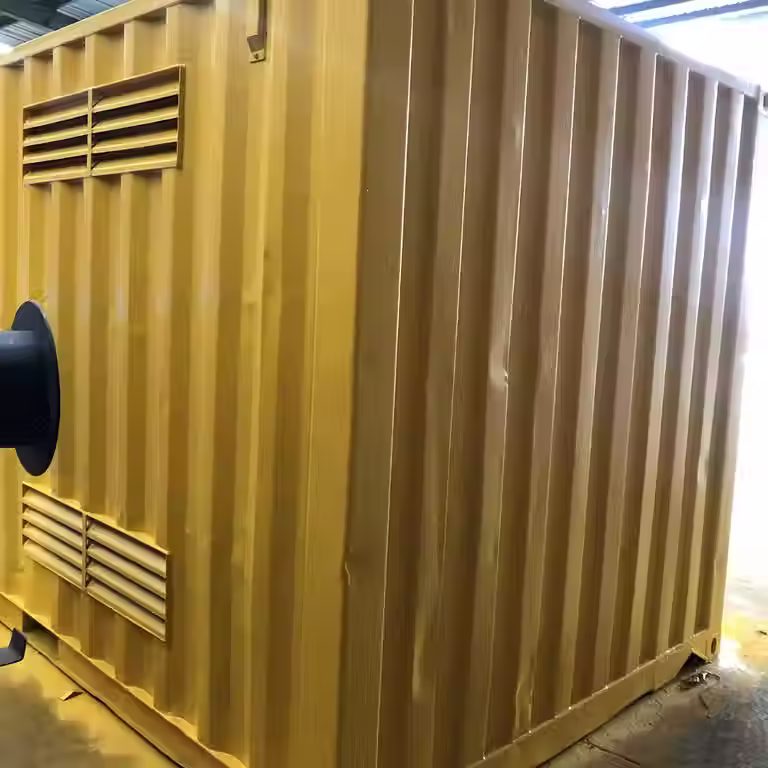

Compact Hazardous Material & Chemical Storage Container with Integrated Bunding
General Product Overview
Unit Type: Compact Hazardous Material & Chemical Storage Container with Integrated Bunding
Capacity: 1,250 Litre Total Liquid Containment Sump Capacity
Condition: New Build / One-Trip Custom Industrial Fabrication (Base Container Shell)
Design Intent: Engineered to provide a secure, weather-proof, and fully compliant hazardous material storage unit for safe containment of chemicals, oils, lubricants, and flammable liquids in industrial or mining environments.
2. Dimensions & Capacities
Parameter | Metric (SI) | Imperial |
External Length | 2,991 mm (10ft variant) or 6,058 mm (20ft variant) | 9 ft 10 in or 19 ft 10.5 in |
External Width | 2,438 mm | 8 ft 0 in |
External Height | 2,591 mm | 8 ft 6 in |
Bund Sump Capacity | 1,250 Litres | 330 US Gallons |
Tare Weight (Est.) | ~1,600 kg (10ft) / ~3,200 kg (20ft) | ~3,527 lbs / ~7,055 lbs |
Max Gross Weight (MGW) | 10,160 kg (10ft) | 22,398 lbs |
3. Material & Structural Specifications
Steel Construction: Heavy-gauge corrugated Corten A-grade weathering steel outer shell, engineered for maximum structural integrity and corrosion resistance.
Integrated Spill Bund: Heavy-duty fabricated steel bund floor featuring fully seam-welded liquid-tight containment sumps designed to hold 110% of the largest single container or 25% of total aggregate volume (compliant with standard environmental regulations).
Flooring Surface: Removable heavy-duty galvanized steel mesh or bar-grating floor panels positioned above the bund sump, allowing spilled liquids to drain safely into the retention reservoir while providing a non-slip walking surface.
Drainage & Maintenance: Integrated drain plug/valve positioned on the exterior to facilitate safe extraction and clean-out of captured spills.
4. Safety, Ventilation & Compliance
Ventilation System: High- and low-level heavy-duty weather-proof ventilation louvers fitted with internal spark arrestor mesh to prevent dangerous vapor accumulation.
Regulatory Compliance: Designed in accordance with standard environmental and occupational health guidelines (EPA / AS1940 / OSHA standards) for hazardous materials storage.
Signage Provisions: High-visibility safety hazard placards and warning signage frames mounted externally.
5. Access & Security Features
Door Assembly: Standard double-wing cargo doors featuring 4 heavy-duty vertical locking cam bars and full-perimeter EPDM rubber weather seals.
Security Protection: Heavy-duty welded steel lockbox shielding padlocks against bolt-cutters, tampering, and harsh weather conditions.
Optional Access: Can be configured with a secondary personnel access (PA) door or side roller shutters upon request.
6. Logistics & Handling
Transport: Fully compatible with standard container transport logistics, including tilt-tray trucks, side-loaders, and flatbed trailers.
Site Deployment: Positioned easily on level hardstands (concrete or asphalt recommended for chemical storage operations) for immediate regulatory-compliant deployment.
