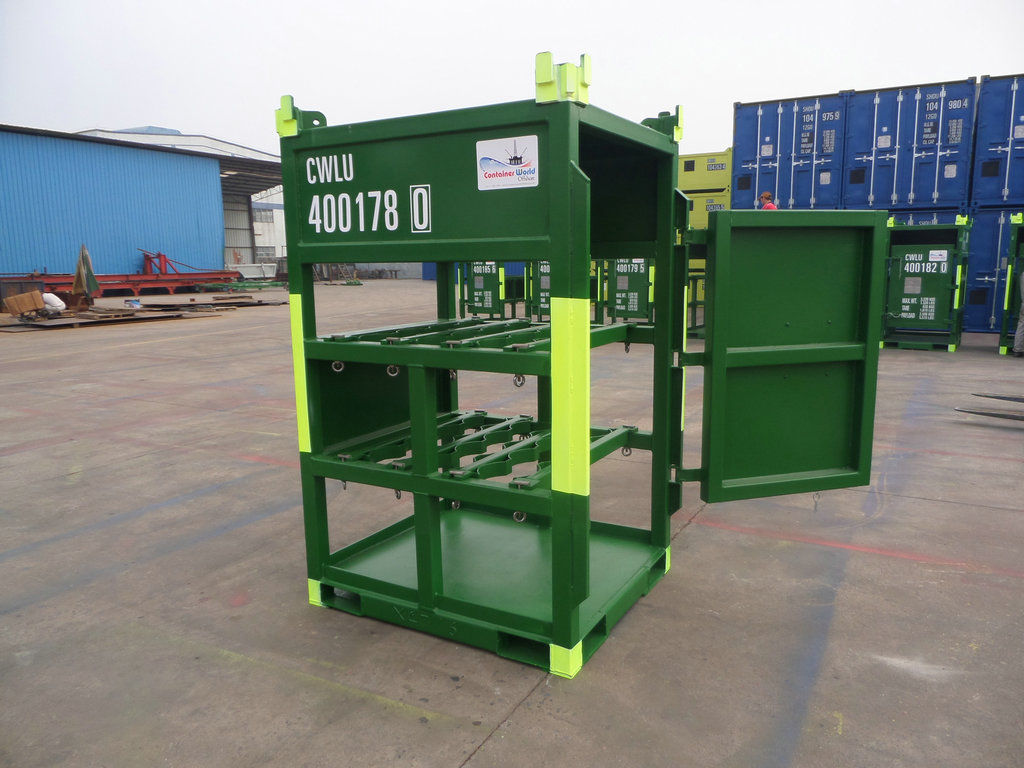

DNV 2.7-1 Offshore Gas Cylinder Rack (Quad / Bottle Quad Container)
The DNV 2.7-1 Offshore Gas Cylinder Rack (CWLU 400178 Series), commonly referred to as a Gas Quad or Bottle Frame, is purpose-engineered for the safe transport, storage, and manifold distribution of compressed gas cylinders on offshore oil platforms, gas rigs, and marine vessels. Built to withstand extreme dynamic sea loads and harsh salt-spray environments, this unit safely houses up to 16 high-pressure industrial gas bottles (Oxygen, Nitrogen, Acetylene, Argon, or Diving Gas).
Certified to strict DNV 2.7-1 / BS EN 12079 and ISO 10855 international offshore standards, the frame is fabricated from heavy-duty structural steel with hot-dip galvanizing or high-build marine epoxy coatings. Each unit comes equipped with internal cylinder webbing/chain retainers, a protective steel roof frame, integrated high-pressure stainless steel manifold pipework, lifting padeyes, bottom forklift pockets, and a certified DNV 2.7-1 4-leg wire rope sling set with safety shackles.
Key Features & Technical Specifications
1. Offshore Safety & Manifold System
DNV 2.7-1 Compliance: Fully certified for offshore dynamic crane lifting, ocean vessel transport, and rig deck storage.
Integrated Gas Manifold: Fitted with high-pressure stainless steel manifold piping, dual flexible leads, and main isolation valves for centralized filling or discharge without removing bottles.
Cylinder Securing: Individual bottle divider slots with heavy-duty quick-release safety chains or ratchet straps to prevent cylinder movement during transit.
Rigging Assembly: Supplied complete with a certified DNV 2.7-1 4-leg wire rope sling assembly and safety bow shackles.
2. Frame Construction & Handling
Heavy-Duty Protective Frame: Overhead crash frame protects valves and regulators against accidental impact or crane hook damage.
Forklift & Stacking: Includes bottom two-way or four-way forklift pockets and stacking corner castings for deck space optimization.
Corrosion Resistance: Hot-dip galvanized frame or marine-grade primer and topcoat finish for corrosion resistance in saltwater offshore environments.
3. Dimensions & Weights
Parameter | Metric Specifications | Imperial Specifications |
External Length | 1,250 mm – 1,550 mm | 4' 1" – 5' 1" |
External Width | 1,000 mm – 1,250 mm | 3' 3" – 4' 1" |
External Height | 2,150 mm – 2,350 mm | 7' 0" – 7' 8.5" |
Bottle Capacity | 12 to 16 Cylinders (50L / 200–300 bar typical) | |
Tare Weight | Approx. 750 kg – 950 kg | 1,650 lbs – 2,094 lbs |
Max Payload | Approx. 1,800 kg – 2,250 kg | 3,968 lbs – 4,960 lbs |
Max Gross Weight | Approx. 2,550 kg – 3,200 kg | 5,620 lbs – 7,054 lbs |
