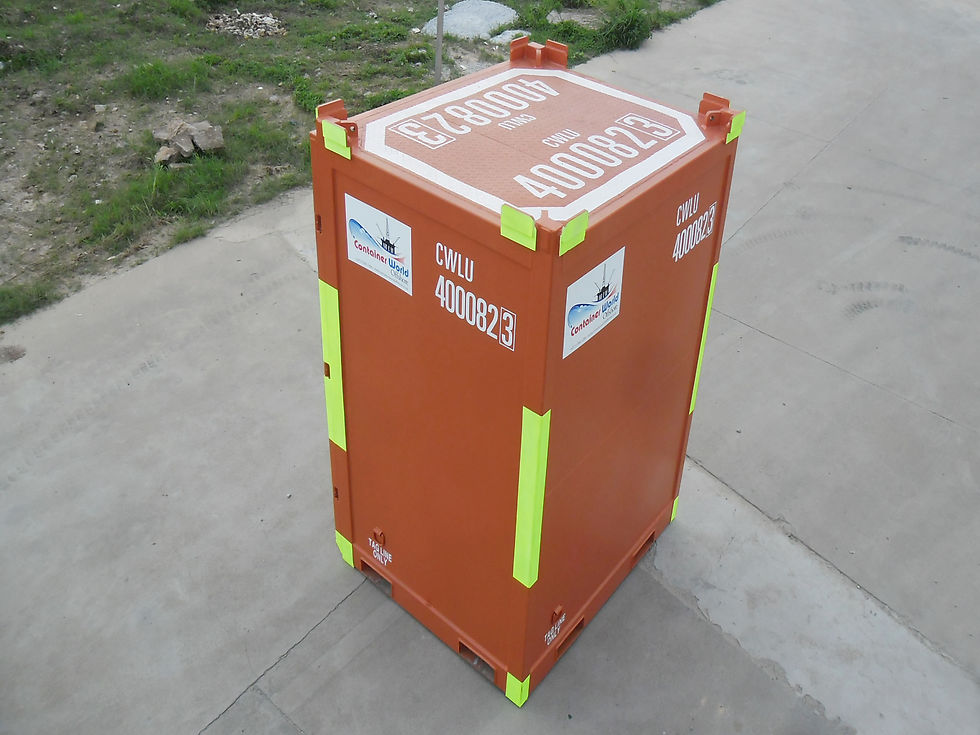

Mini Offshore Container (DNV 2.7-1 / EN 12079 Certified)
The Mini Offshore Container is specifically designed to optimize deck space while providing secure, weather-tight storage for smaller cargo consignments, specialized tooling, testing kits, valves, and chemical drums sent to offshore oil platforms, gas rigs, and marine vessels. Where full-sized 10ft or 20ft containers create unnecessary weight and deck footprint, this compact unit delivers maximum operational flexibility and ease of handling.
Certified strictly to DNV 2.7-1 / BS EN 12079 and ISO 10855 international offshore standards, each mini container is constructed from heavy-gauge anti-corrosive Corten steel and finished with high-build zinc-rich marine epoxy paint. Equipped with double swing doors, lockable door bars, heavy-duty internal shelf brackets or lashing points, and corner guide posts for secure stacking, it comes complete with a certified DNV 2.7-1 4-leg wire rope sling set with safety bow shackles.
Key Features & Technical Specifications
1. Offshore Certification & Rigging
Offshore Safety Compliance: Fully certified to DNV 2.7-1, BS EN 12079, and ISO 10855 for marine dynamic load lifting and harsh sea environments.
Rigging Assembly: Supplied complete with a certified DNV 2.7-1 4-leg wire rope sling set fitted with safety bow shackles.
Integral Padeyes: Four high-tensile steel padeyes integrated directly into the upper corner castings.
Deck Space Optimization: Compact footprint allows multiple mini containers to be positioned together or stacked securely on vessel decks.
2. Construction & Secure Interior
Corten Steel Shell: Built with corrugated anti-corrosive Corten steel panels to withstand severe offshore weathering.

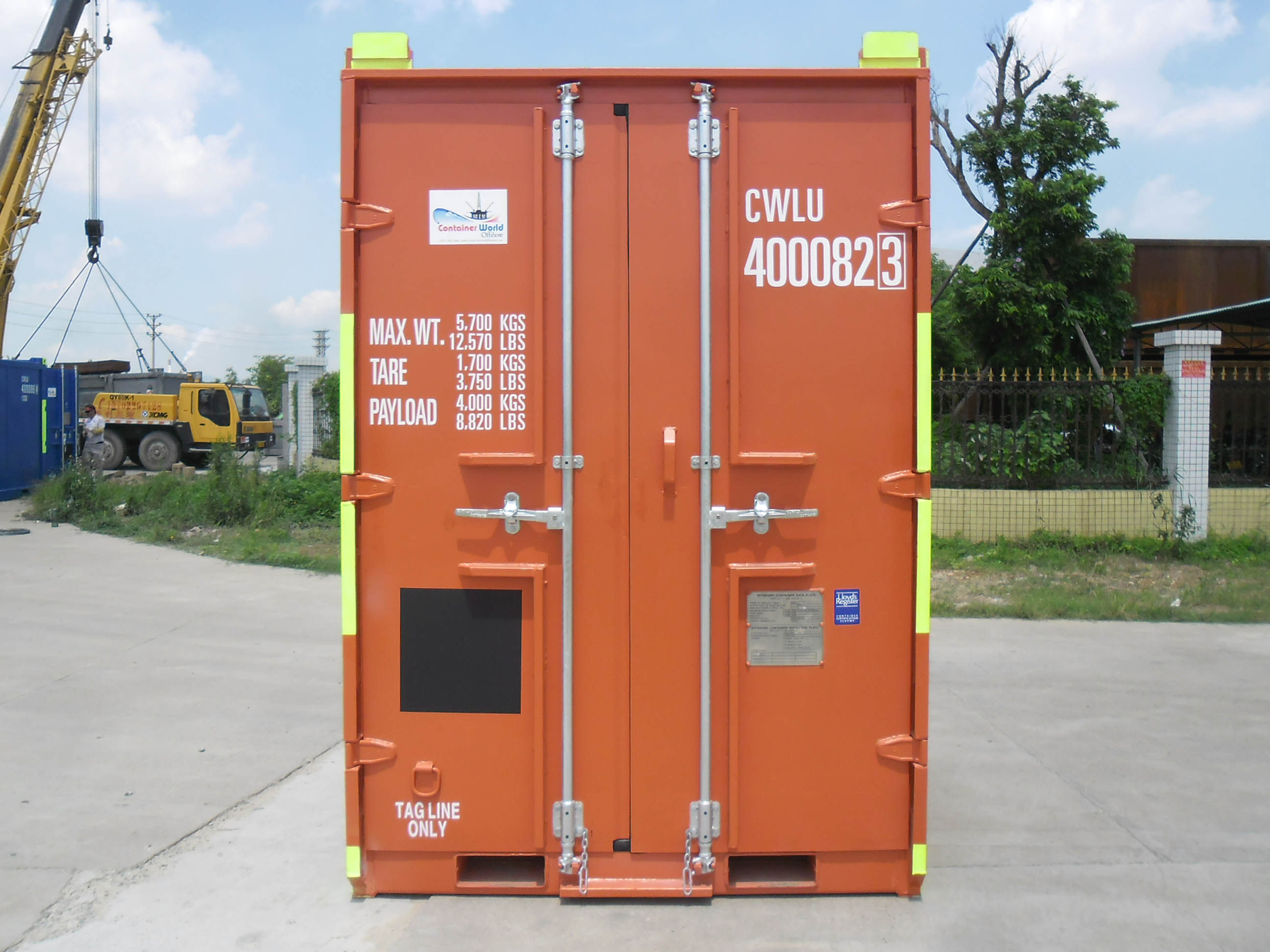

Door Locks & Weather Seals: Double rear doors fitted with heavy-duty locking bars and full EPDM rubber weather gaskets.
Internal Lashing & Shelving: Multiple tie-down rings along internal top/bottom rails with optional removable internal shelves.
Forklift Handling: Built-in 4-way forklift pockets for easy site maneuverability and deck movement.
3. Dimensions & Weights (Typical 5ft–6ft Mini Footprint)
Parameter | Metric Specifications | Imperial Specifications |
External Length | 1,582 mm – 1,830 mm | 5' 2" – 6' 0" |
External Width | 1,582 mm – 1,800 mm | 5' 2" – 5' 11" |
External Height | 2,438 mm – 2,591 mm | 8' 0" – 8' 6" |
Internal Length | 1,420 mm – 1,670 mm | 4' 8" – 5' 5.7" |
Internal Width | 1,420 mm – 1,640 mm | 4' 8" – 5' 4.5" |
Internal Height | 2,100 mm – 2,250 mm | 6' 10.6" – 7' 4.5" |
Tare Weight | Approx. 1,200 kg – 1,500 kg | 2,645 lbs – 3,306 lbs |
Max Payload | Approx. 3,500 kg – 5,000 kg | 7,716 lbs – 11,023 lbs |
Max Gross Weight | 5,000 kg – 6,500 kg | 11,023 lbs – 14,330 lbs |
